Boom Barrier Gate

Name: Boom Barrier Gate
Brand: DOOR
Price: 1 USD

Brand Name : DOOR

Model Number : DR.DZ.02

Certification : CE / IS09001

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 3000 sets per month

Delivery Time : 5-7 working days

Packaging Details : Cartons

Boom Length : Max 6M (Customized)

Level : IP55

Color : Silver-black(other colors can be customized)

Warranty : 1 Year

Application : Parking Lot / Entry&Exit

UP/Down Speed : 1s,3s,6s

Voltage : AC110V/AC220V

Length Type : Straight / Folding / Fence

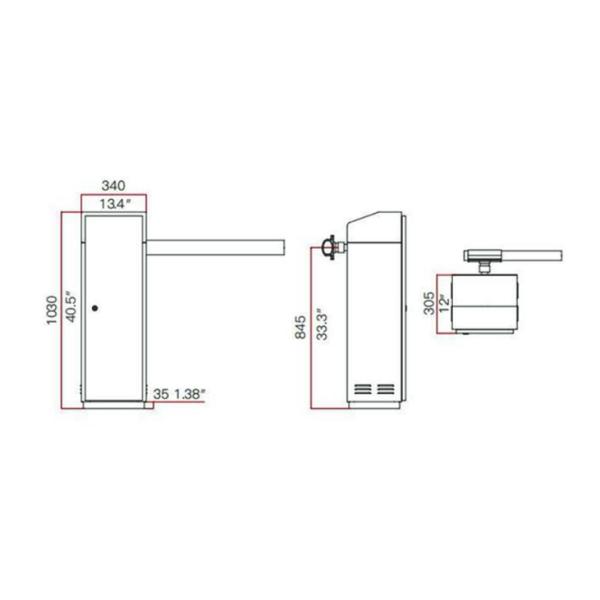

Dimensions : L340*W305*H1050mm

Motor Wattage : 120W

Arm to ground : 0.85M

Arm opening time : 6s, 3s, 1s optional

Straight arm length : Straight Arm:＜6m

Folding arm length : ≤ 4.5m

Two-fence arm length : ≤ 4.5m

Three-fence arm length : ＜ 4m

Working temperature : -20℃-+65℃

Contact Now

Optimized Description:

Manual Release & Reset: Features an advanced manual release mechanism for quick arm operation during power failure. Automatically resets to standard operation upon power restoration.
Smooth Boom Operation: Boom movement is powered by a motor-driven crankshaft transmission system, ensuring exceptionally smooth and reliable operation.
Remote Control: Supports remote control operation for raising and lowering the barrier arm.
Safety Features:
- Auto-Reverse: The boom automatically reverses direction if it encounters an obstruction during descent.
- Auto-Stop (Optional): Offers an optional mode where the boom stops immediately upon detecting an obstruction.
Obstruction Detection Interfaces:
- Infrared Photocells Interface: Ready for integration with infrared safety beams (photocell device required).
- Loop Detector Interface: Ready for integration with vehicle detection loops (loop detector required). Enables:
  - Obstruction avoidance (prevents boom from hitting vehicles).
  - Automatic lowering of the boom after a vehicle passes through.
Communication & Control:
- Integrated RS485: Provides an industrial-standard RS485 communication interface for computer-controlled operation (raise, lower, stop).
- Traffic Light Interface: Includes a dedicated interface for connecting and synchronizing with traffic signal lights.
Advanced Counter & Auto-Closing Logic:
- Integrated Counter: Tracks and stores the number of valid opening signals received.
- Auto-Deduct & Lower: Automatically deducts a count upon confirmed vehicle passage (via loop detector) and lowers the boom afterward, significantly improving traffic flow efficiency.
- Auto-Closing Function: Works in coordination with the counter:
  - If the number of vehicles passed is less than the stored opening signal count, the boom initiates a countdown to automatic lowering.
  - The countdown timer is reset upon receiving a new "raise" signal or a vehicle detection signal from the loop detector.

Product Tags:

6M boom barrier gate

IP55 rated parking lot barrier

car barrier gate with warranty

Boom Barrier Gate Images
